SPECIFICATION
Dimension*Height | Ø44.3*12.2 |
Material | Optical PC |
Beam Angle | 38º |
Lens Transmission | 90% |
Temperature Resistance | -40℃~+ 80℃ |
CoD | SGS/ROHS |
Matched LED | 2-6*2835 |
Storage Temperature | 0℃ ~ + 40℃ |

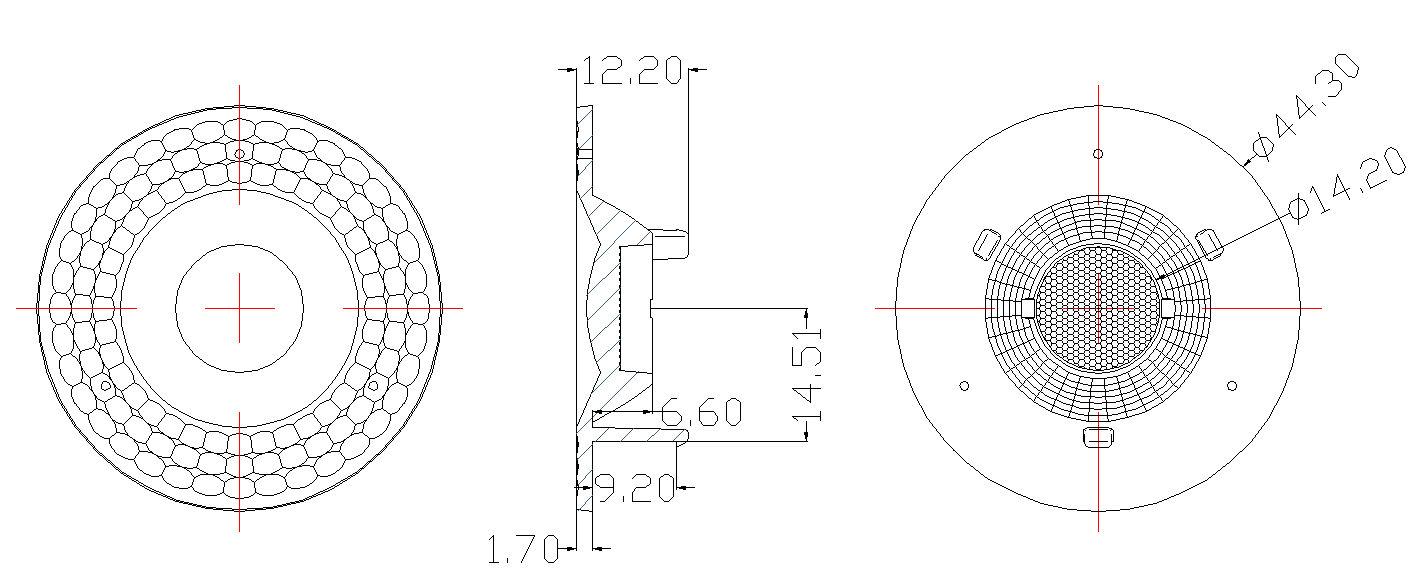

Product outline

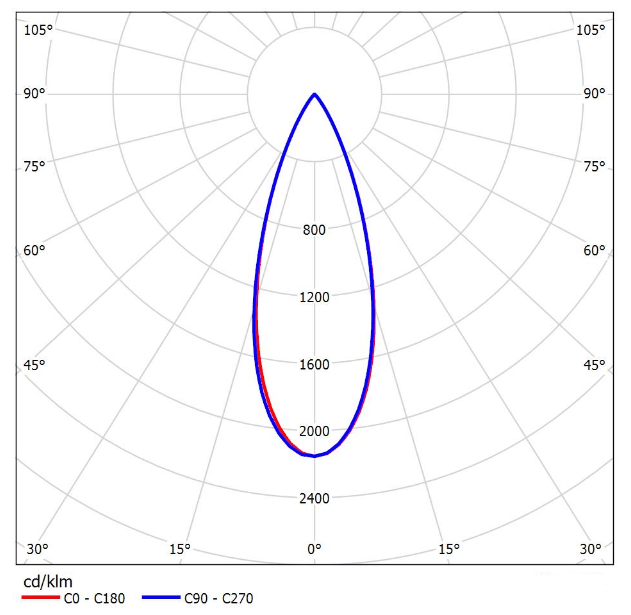

Optics Report
Design Idea
1.Show the application of the combination of optical and construction.
2.The lens is suitable for indoor lighting must provide enough brightness at the same time, can effectively control the flux of waste.
Note
1. Specific size can be made according to requirements.
2.The unit of all the dimensions is mm, and the drawing follows a certain proportion.
Other Related Notes
1. If necessary, clean lenses with water and soft cloth . Never use any commercial cleaning solvents on lenses.
2.Please handle or install lenses with wearing gloves and keep clean, skin oils may damage lens or its optic characteristic.
3.Operating Temperature range -40℃ ~ + 110℃
4.Storage Temperature range 0℃ ~ + 40℃
